Description

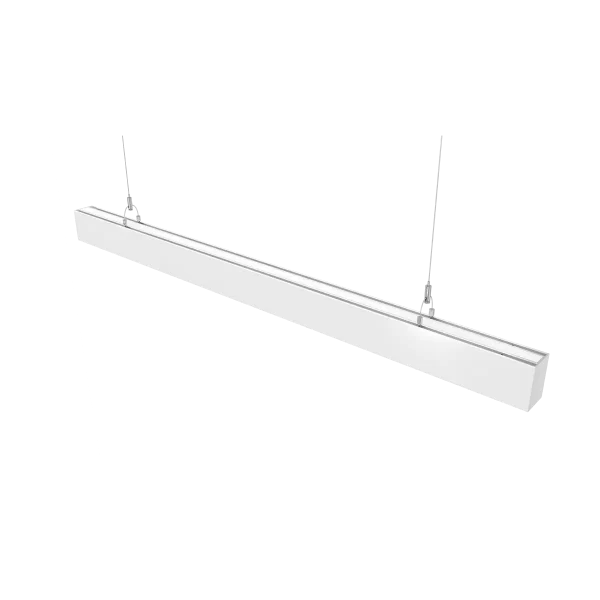

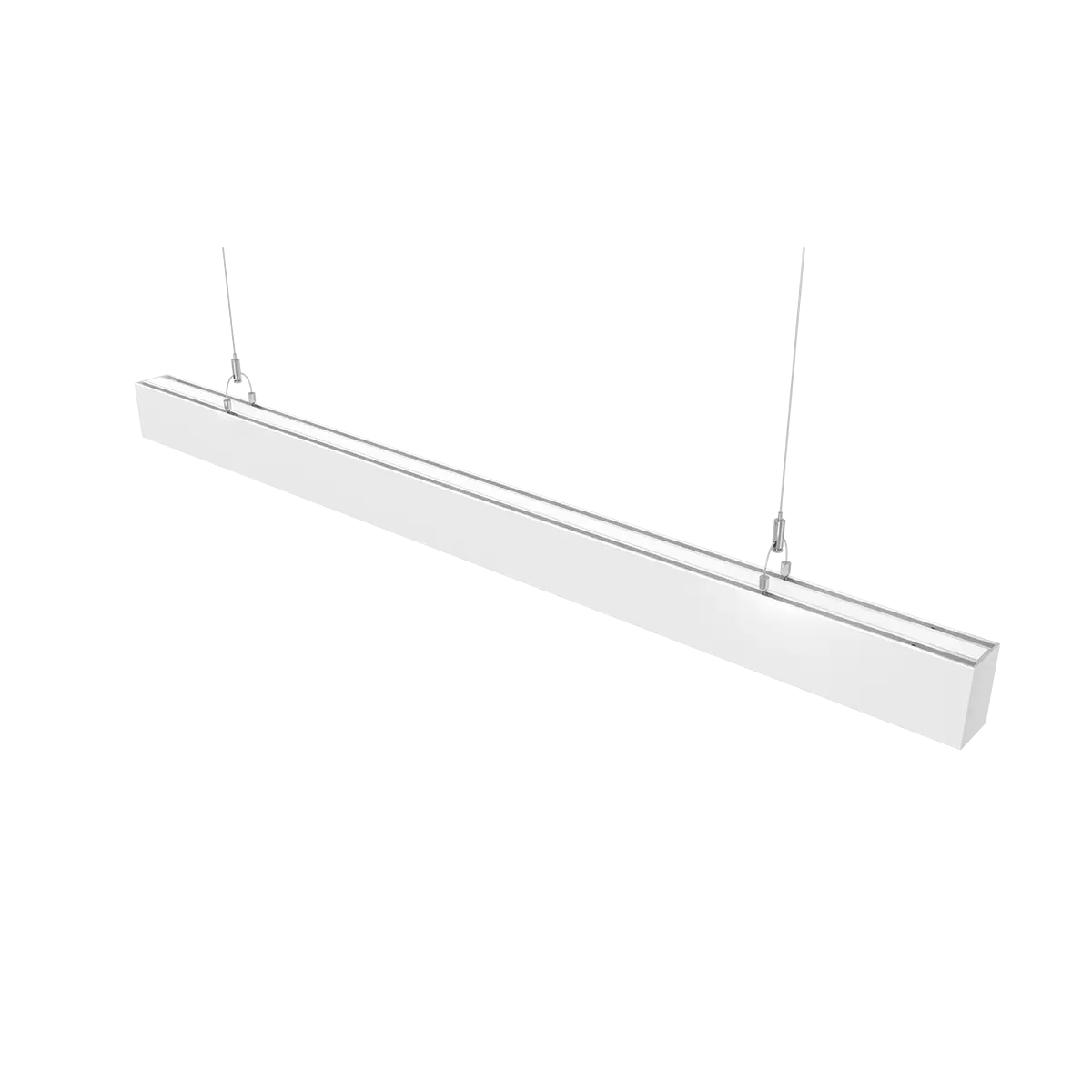

Ventur is a linear LED luminaire designed especially for designers and architects with imagination and personal style. The linear LED luminaire is made of premium aluminium profiles of different sizes, easy to install. There are two types of installation: ceiling suspended or wall mounted. Custom sizes are possible to meet the requirements of different areas and occasions. The system has direct (70%) and indirect (30%) lighting.
—
Intro:
Mounting type: suspended, applied
LED type: SMD
Voltage: 100-240VAC / 50-60Hz
Use temperature: -10/+35°C
UGR: < 19
CRI: > 80
PF: > 0.95
Angle: 110°
—
Benefits:
- Extruded aluminium body with PC diffuser
- Simple and modern design, no screws
- Uniform and pleasant illumination without dark areas
- Three possible lamp body colours: white, black and silver
- Freestanding mounting – single body or continuous linear connection up to max 550W
—
Body, optics:
Body made of die-cast and pressure-finished extruded aluminium
—
